Dual tracker set with anemometer

Product no.:	AD258
Your price:	$328.00

Professional Version
Model No.: SST-16007 with 2 actuators( Free shipping )
12/24DCV solar tracker controller and optical sensor with water proof case

East / West / South and North limit switch design , It can help the tracker

back to East in the night for waitng the morning sun
This design good use for acutator ( Voltage : 12DCV / 24DCV)
Watch the link to know how it work :https://youtu.be/zcOGcXarilY

16007

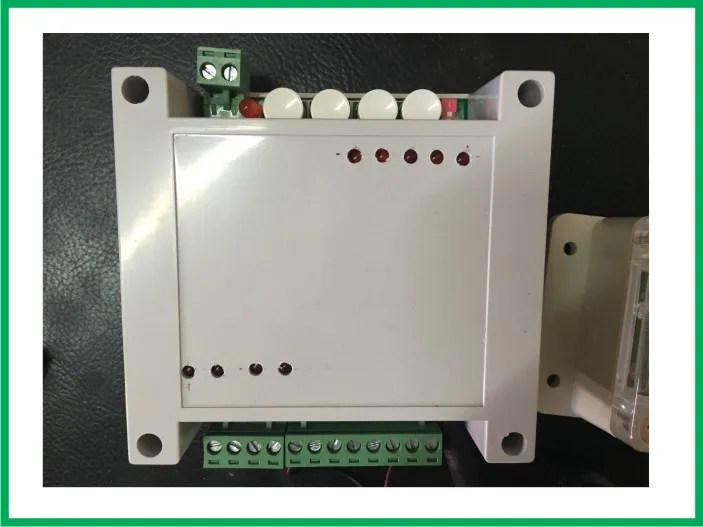

control unit
double sensor unit

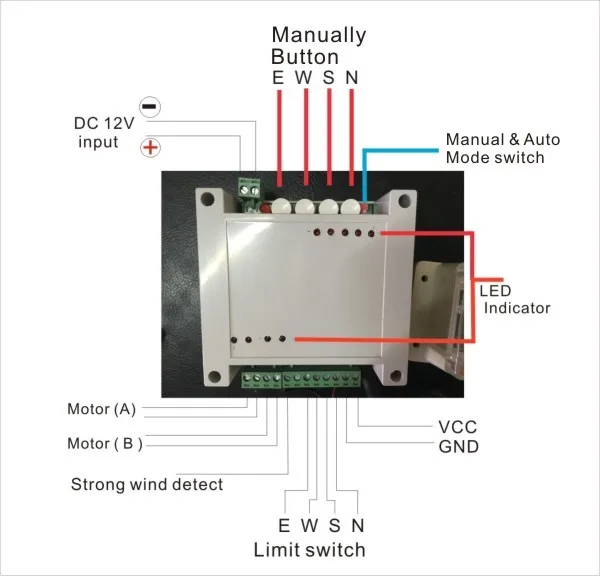

How to connect all the cables :
SST-16007 guide

This device can help your solar system energy increased by 70%.
Easy to use, easy to install, play the best performance of your solar system.
There is a price cheaper than the market.

Technical characteristics:

Solar tracker type	Single Axis
Installation angle	it is based on customers’ requirements
Installation height	it is basedon customers’ requirements
Sensor protect with :	Dome plastic case
Input power	12 DCV / 24DCV
Output power	12 V / 24V
Motor and actuator support	12 / 24 DCV ( under 10 amps )
Sensor type	1 set of coptical sensor ( to East/ West /South and North ) Sensor reaction time : <0.5 /S

Features of actuator :
Max. Load: 1500N
Motor Voltage: 12V
Max. Speed: 6mm/sec
Standard Stroke: 300mm
Adjustable Limit Switches
Reed Switch Sensor
Duty Cycle: 10%
Weight:2.5kg

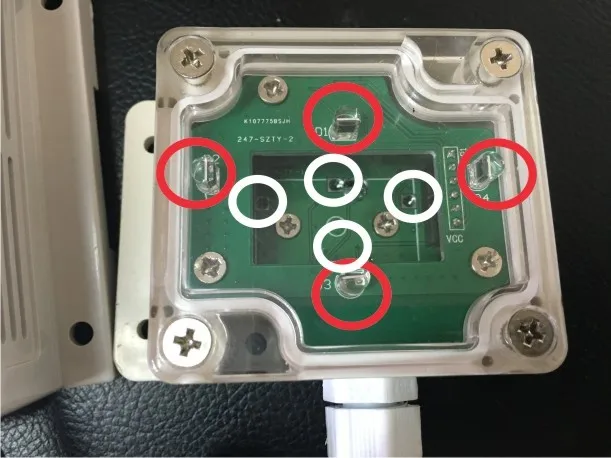

Note : in order to get the good performance , we design
2 of sets sensor , and it is put on 2 layers.
The top layer to detect the sun light then the under layer
can aim to the sun .fast reaction .
2 Layer sensor
------------------------------------------------------------------------------
Application :

Solar refection mirror system

Solar concentrator

Sun flower system
Powerful solar water heater .
____________________________________
item included :

1 X sun tracker controller .

1 X Sensor unit
2 X Actuators
Please contact us if the wind speed sensor need( extra cost need ) ________________________________________________

How this kit work :

When you use this product, just need to install it on top or midle of the solar bracket and a fix the Sensor unit point to the sun , when the sun moveing then the tracker drive the motor or actuator device to follow the sun all day long
How about the energy you can get :
According to our tests, the installation of a "dual axis solar tracker", we can be increased from 55% to 75% of Solar energy (compared to the terms generally are not equipped with this device)

How much you can save :
in addition, under this calculation if we take a group of USD 1500 solar panels, if available, an additional 50% is equal to save USD 750.
This be considered truly achieve environmental protection can save money on our product ideas.
